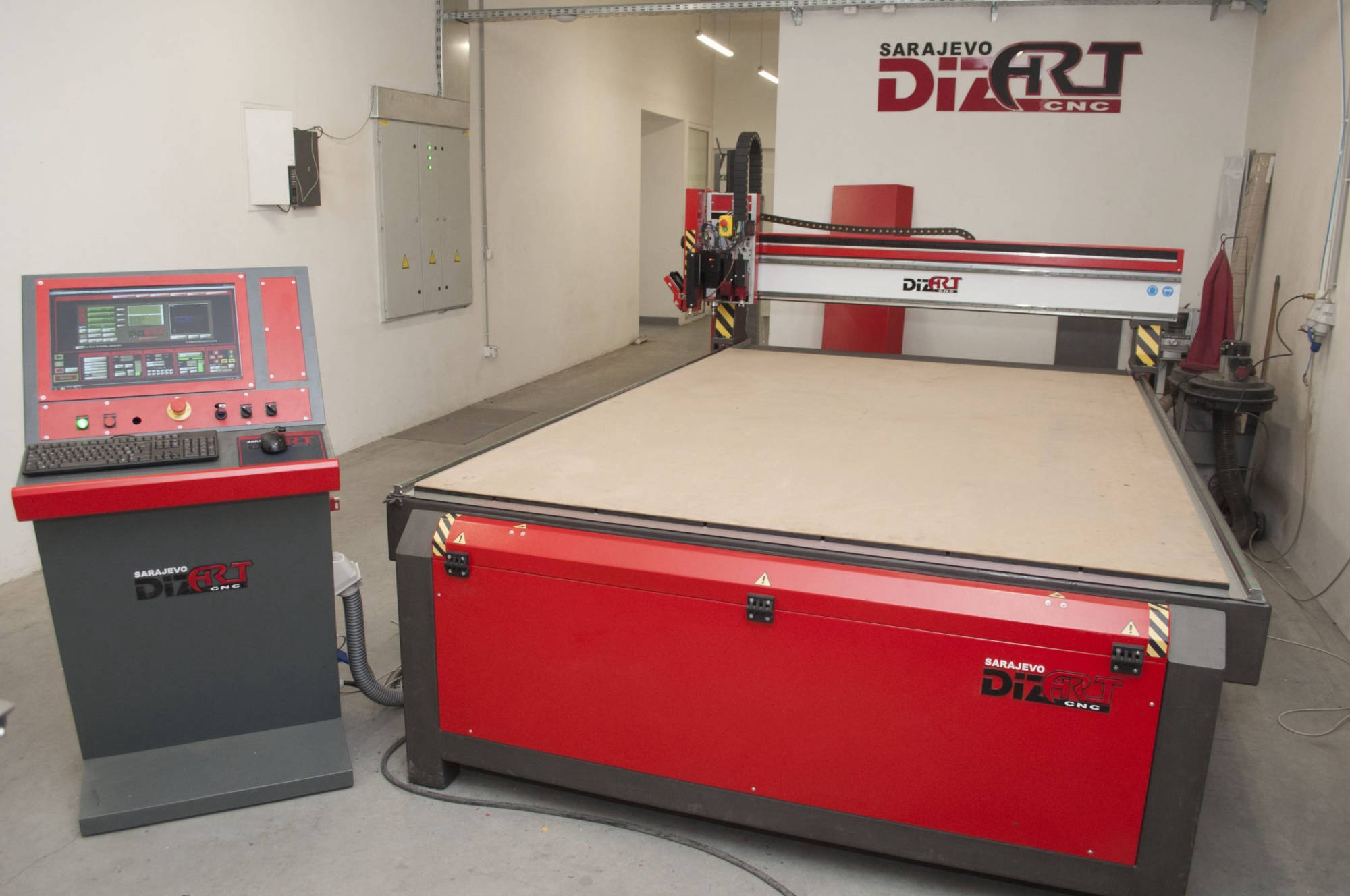

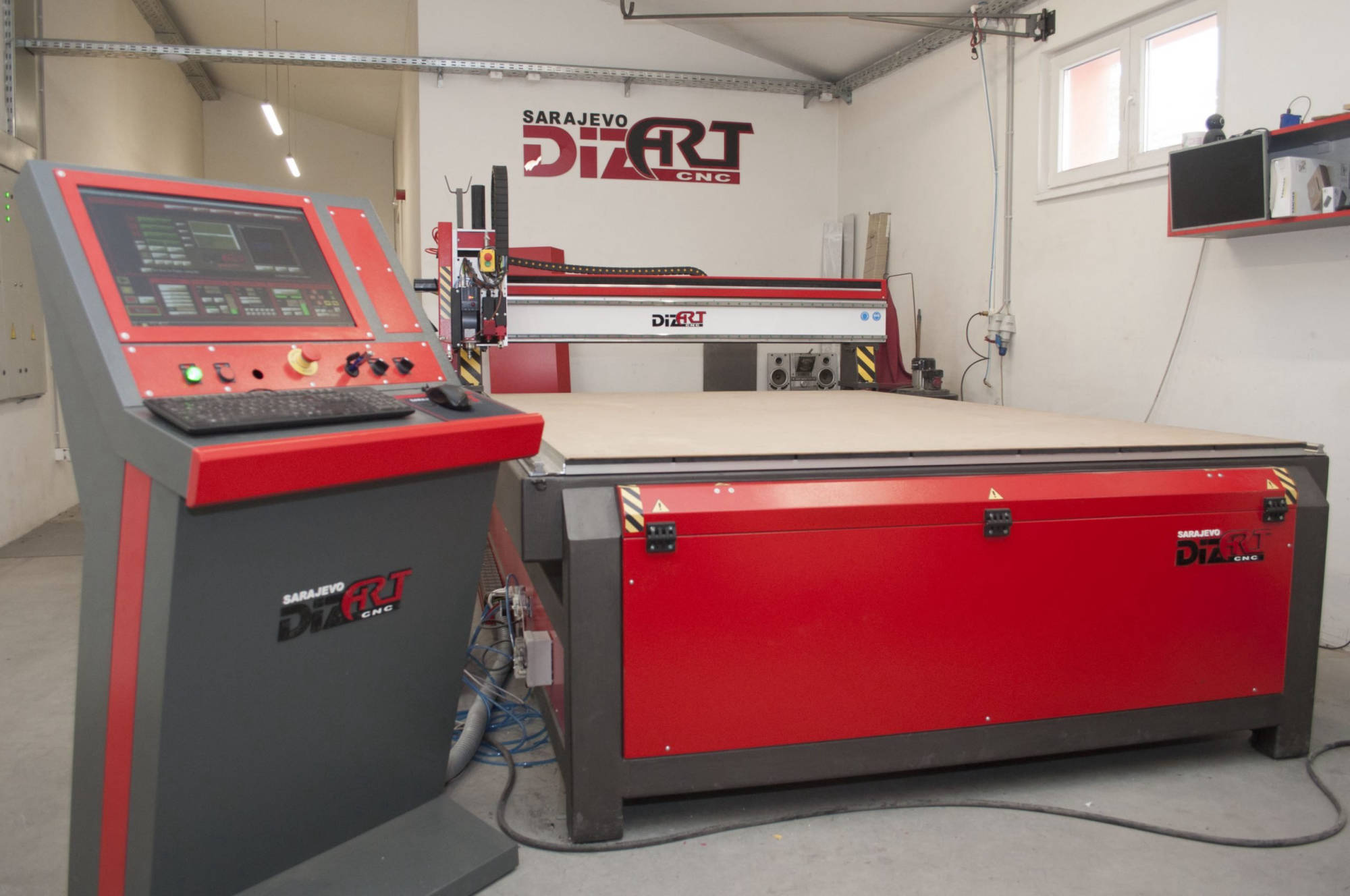

The Router 2030 is the largest machine we produce.
It is intended for medium and large wood processing companies, manufacturers of PVC and aluminum joinery and souvenir production workshops.
For the advertising industry, it is the best solution because, because of the great ability to upgrade the floor, you can practically do everything from small signage to alukobond facades on buildings.
mm
2050 x 3050
X - Y
W
2 200 - 15 000
Spindle
Tech
Mach3
Control Software
VVA+ machines are based on following standard quality measures and details.
Machine Construction
Steel tube based construction
(4 - 6 mm thick) for base and upper gantry
10mm thick steel profile for lower gantry and side carriers
Aluminum based Z-axis and other mechanisms
2mm sheet metal for machine armor
Technical Data
Motion System - Full Ballscrew motion system
Linear rail system with 30mm size profiled linear HIWIN rails with 4 carriages per axis
Floor space requirement:
3000 x 3000 mm
Weight: 1500 kg*
Accuracy: 0.05 - 0.1mm

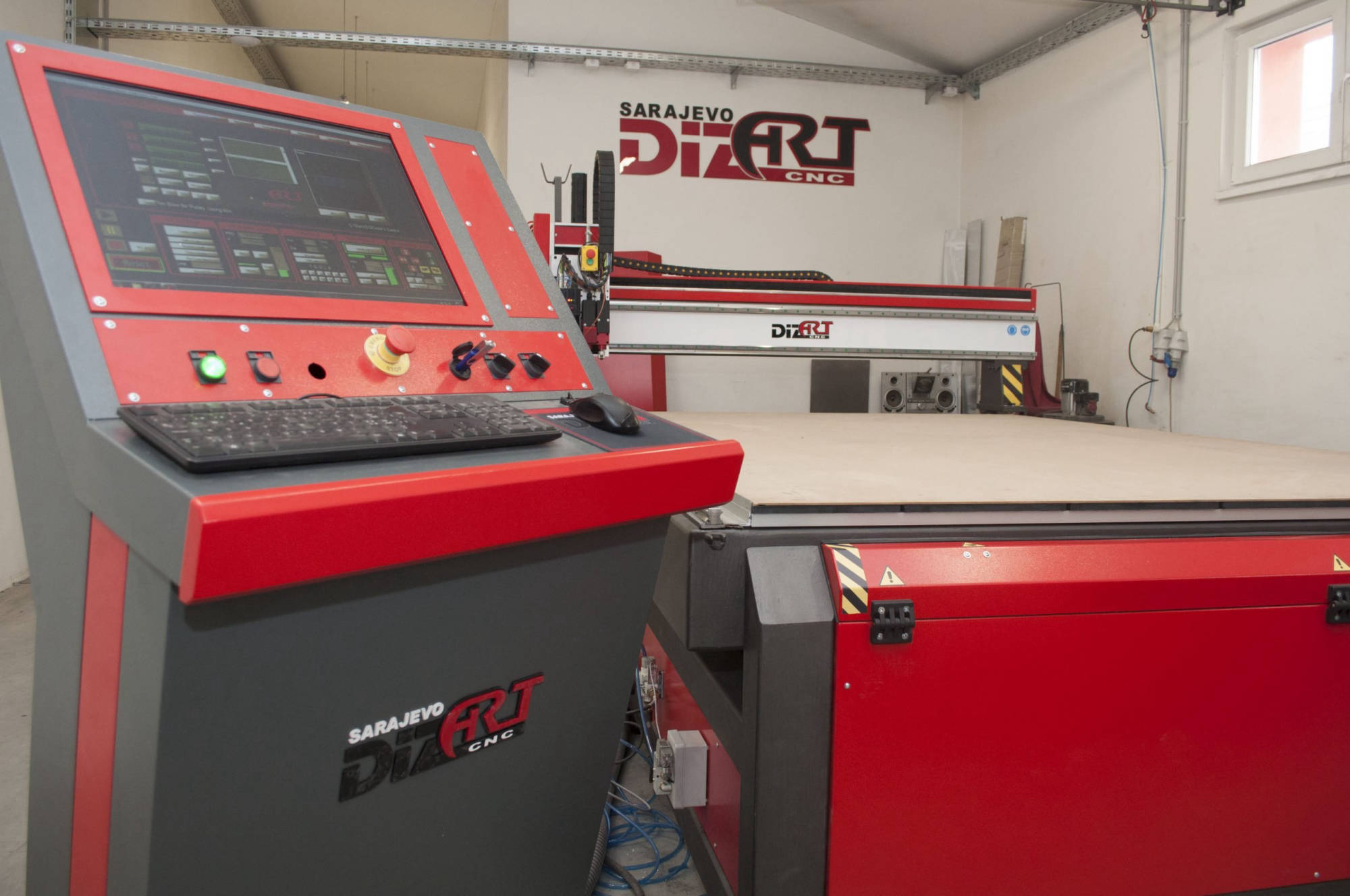

Electronics and Control
Safety circuit with circuit breakers and switches
Axis motor drivers, Variable Frequency Drive for spindle
Mach3 based control board for motion control
Limit switch sensors and pneumatic control equipment
Numbers
Spindle max rotation speed:
30 000 rpm
Max movement speed (G0):
5 000 mm/min Stepper
10 000 mm/min Servo
Recommended working speed:
2 000 - 2 500 mm/min
Software
Customized Mach3 software, pre-configured and ready for the customer
PC based control, with Windows OS
Easy to use software control interface and hardware control interface
Work Materials
Wood
MDF
Plywood
Other wood composites
Aluminum
PVC
Acrylic
Plexiglas
Other Plastics
* All models are available for customization and add-ons. Check table below for overview of specs and additional features.
All models include
Heavy steel frame and consturction
(4-6mm of wall thick steel)
HIWIN rails for linear motion
Rotating ball nut on the Y-axis
Rotating ballscrew on X and Z axis
All ballscrews fully covered
Designed with transportation in mind
SMC Pneumatics
Basic Model
Stepper motor movement control (NEMA 32) 12Nm
Basic work table, requires mechanical fastening of parts
High quality 2.2kW QTC Italian made spindle, ER32, single tool
Standard Model
Stepper motor movement control (NEMA 32) 12Nm
Vacuum work table, includes two strong vacuum pumps
Custom set and change vacuum table area
High quality 2.2kW+ QTC Italian made spindle, ER32, single tool

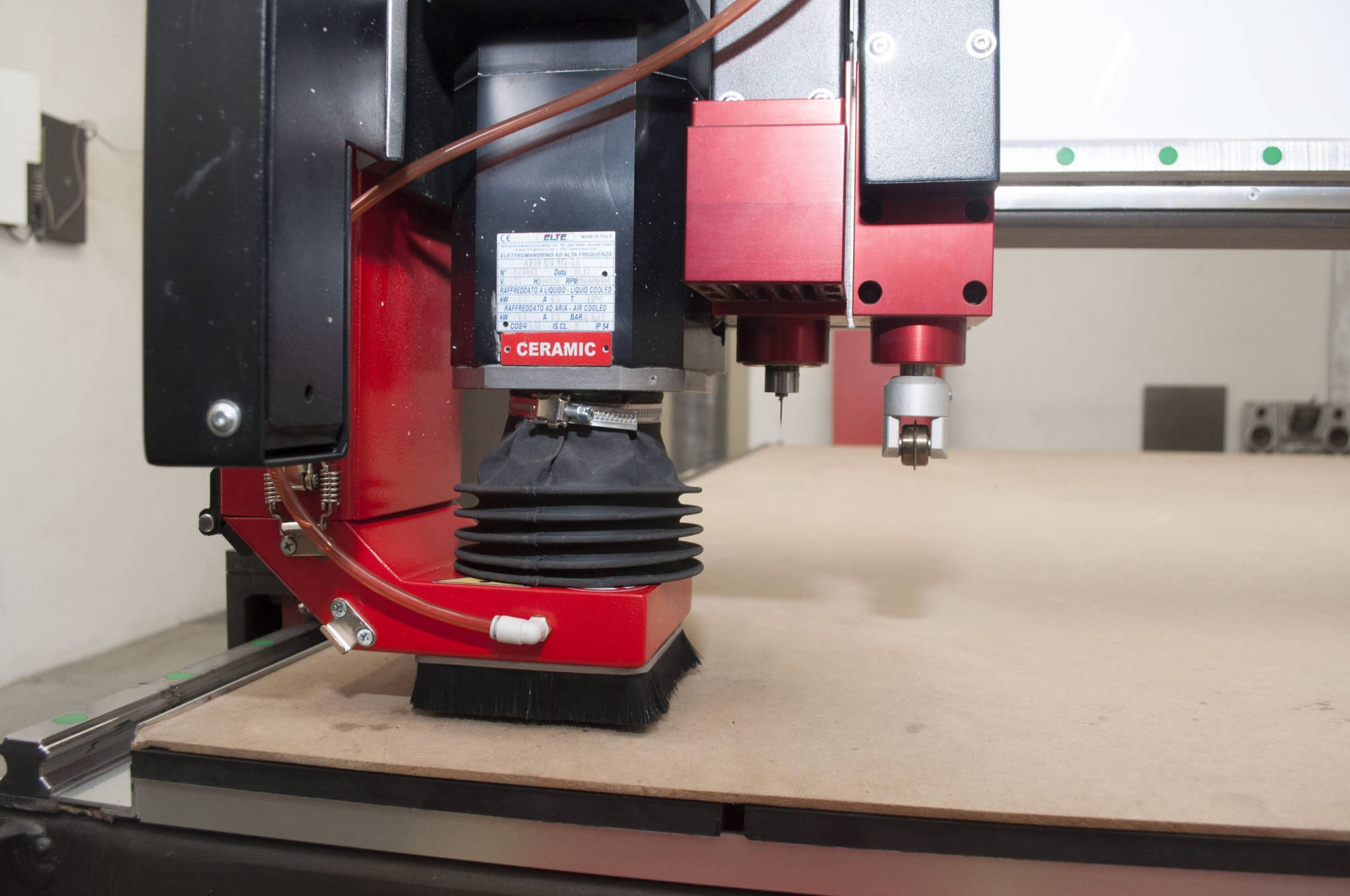

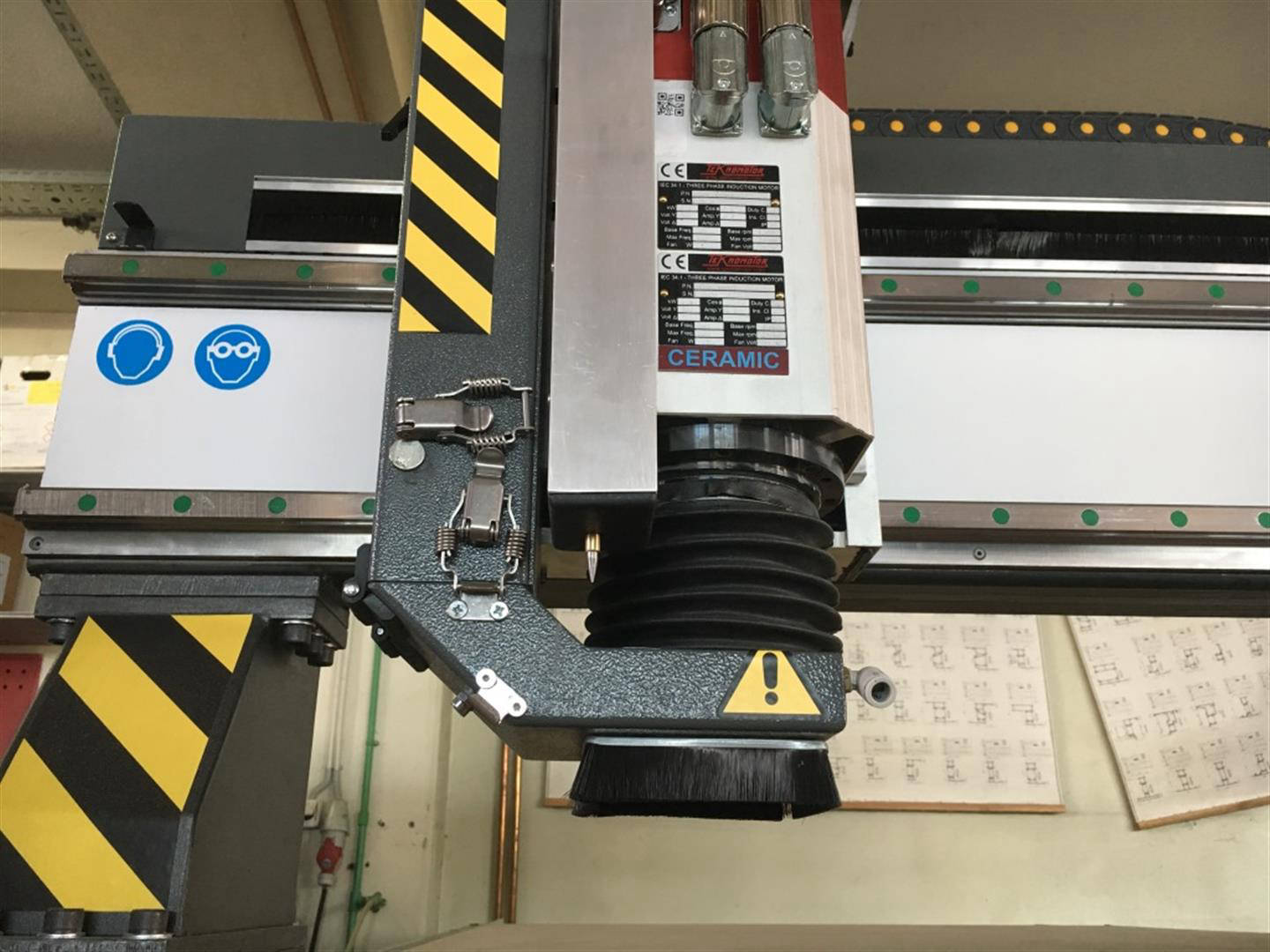

Floating dust shoe, extraction solution is the most efficient we’ve used to date
Pro Model
Servo motor movement control. More precision and speed added to the machine.
Schneider or Delta Servo systems available. Power of each motor 750W+

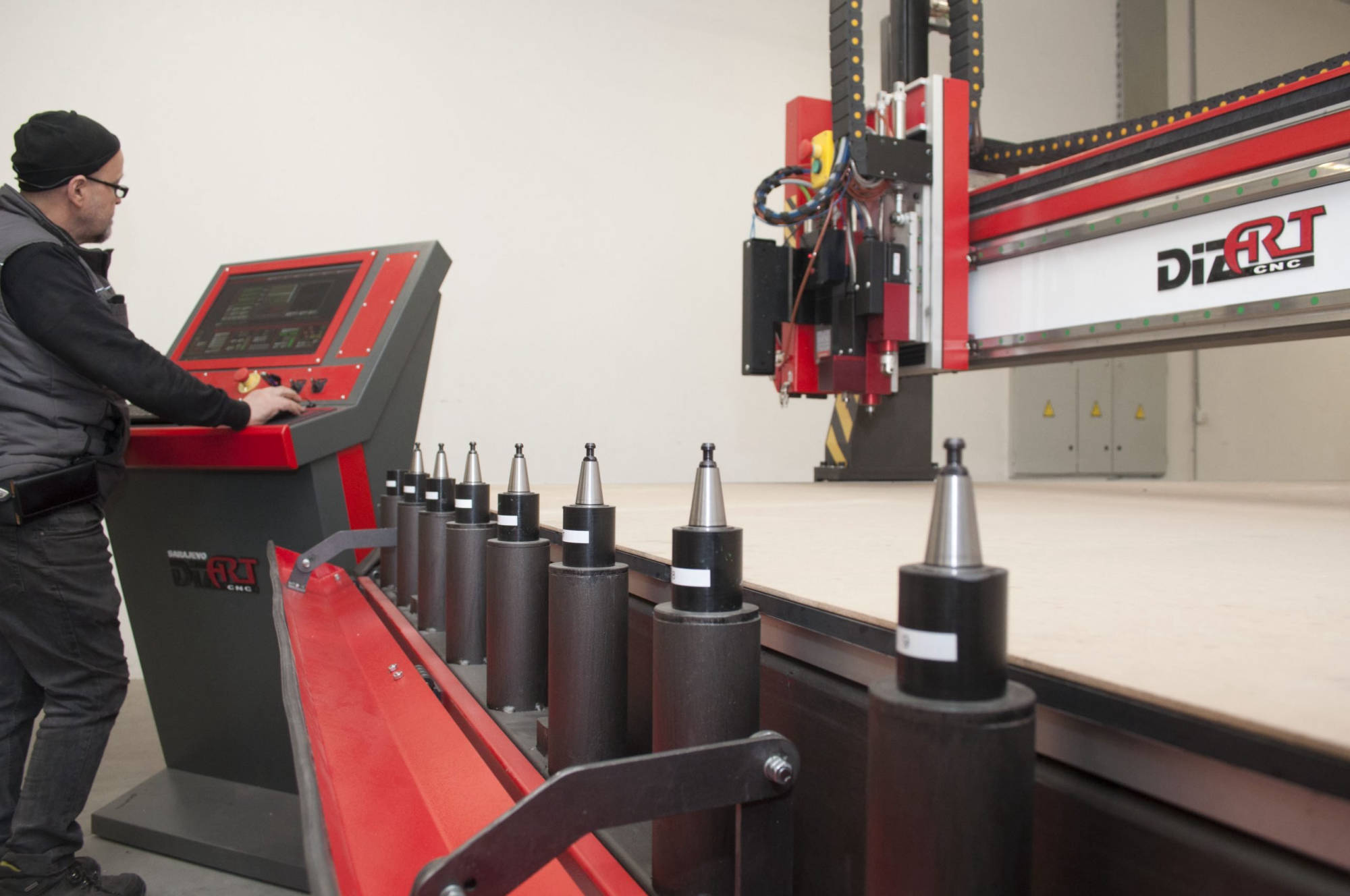

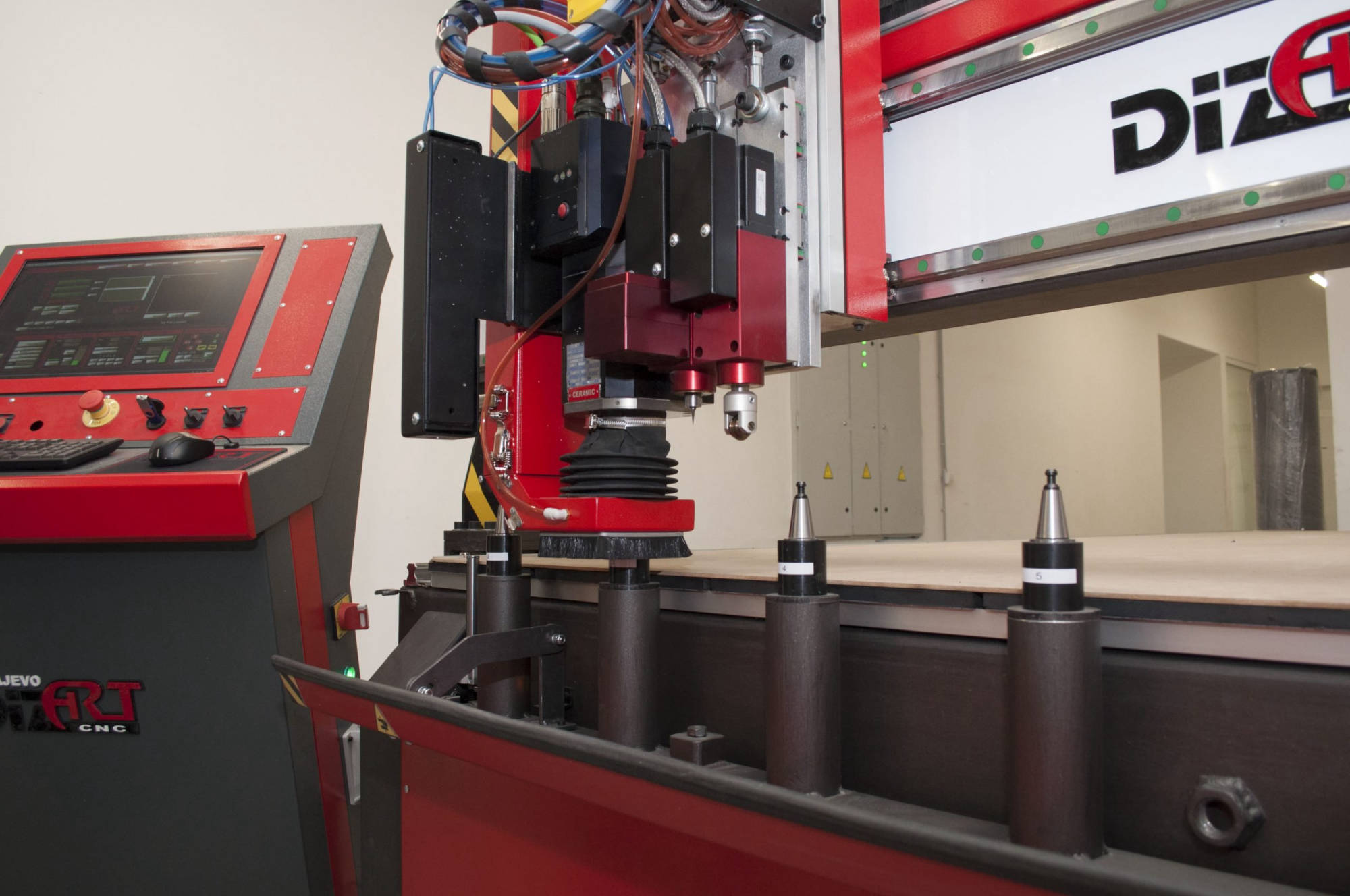

Full ATC system - Automatic tool change system with 8 tools in magazine (ISO 30 tool holders).
Multilevel sensing of tool states.
Pre-program all tool offsets
Fully automated machining
High quality 4kW+ ATC Italian made spindle, with 5kW+ VFD from Schneider or Delta.
Vacuum work table with custom zones support
Floating dust shoe for dust extraction.
Every of our machines can be customised for customer's needs. Through years of experience we've developed standard set of features that can be added on on any of our routers.
VVA+ company even developed custom, non-standard, solutions for some customers that had specific needs. Contact us if you have specific requirements, we're ready to collaborate with you!

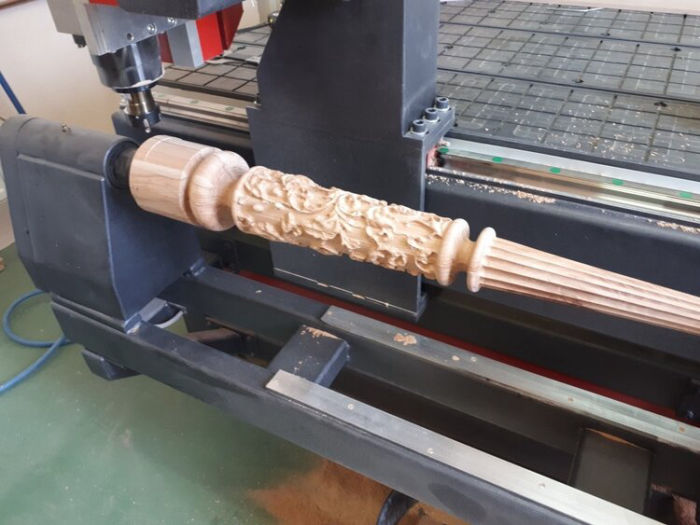

Ideal for processing the round parts. Used for processing more complex shapes and more detailed work

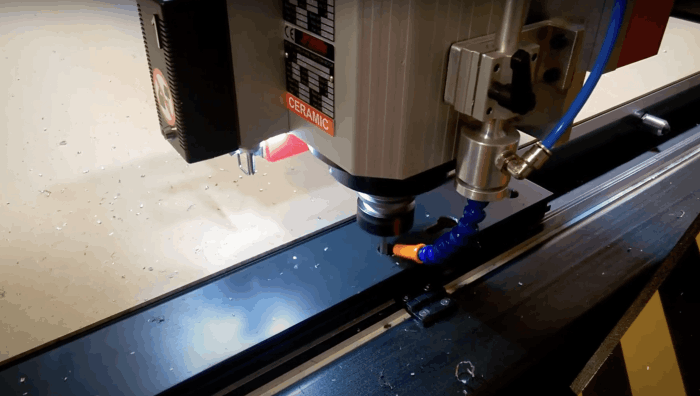

Ideal for aluminum profile milling for joinery companies

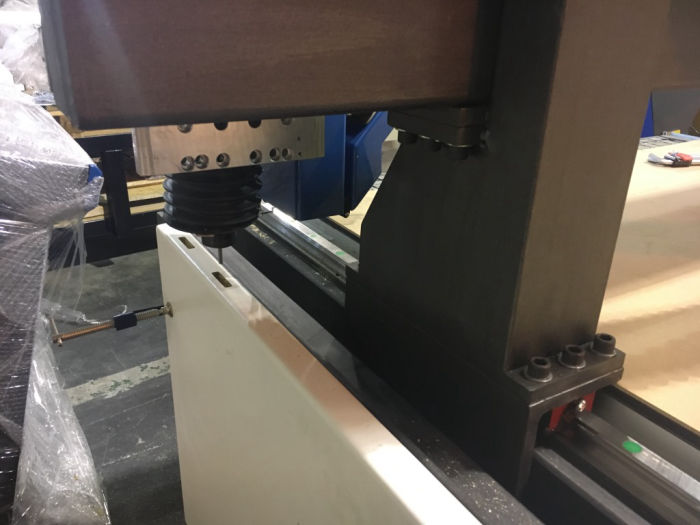

Ideal for joineries and wood processing companies. Processing of profiles on the sides that can't be reached on the work surface.

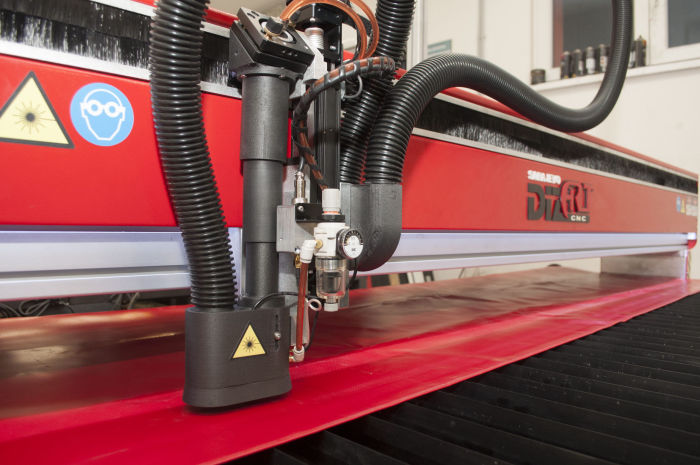

Add low-powered CO2 laser for additional engraving feature. Make your machine hybrid.

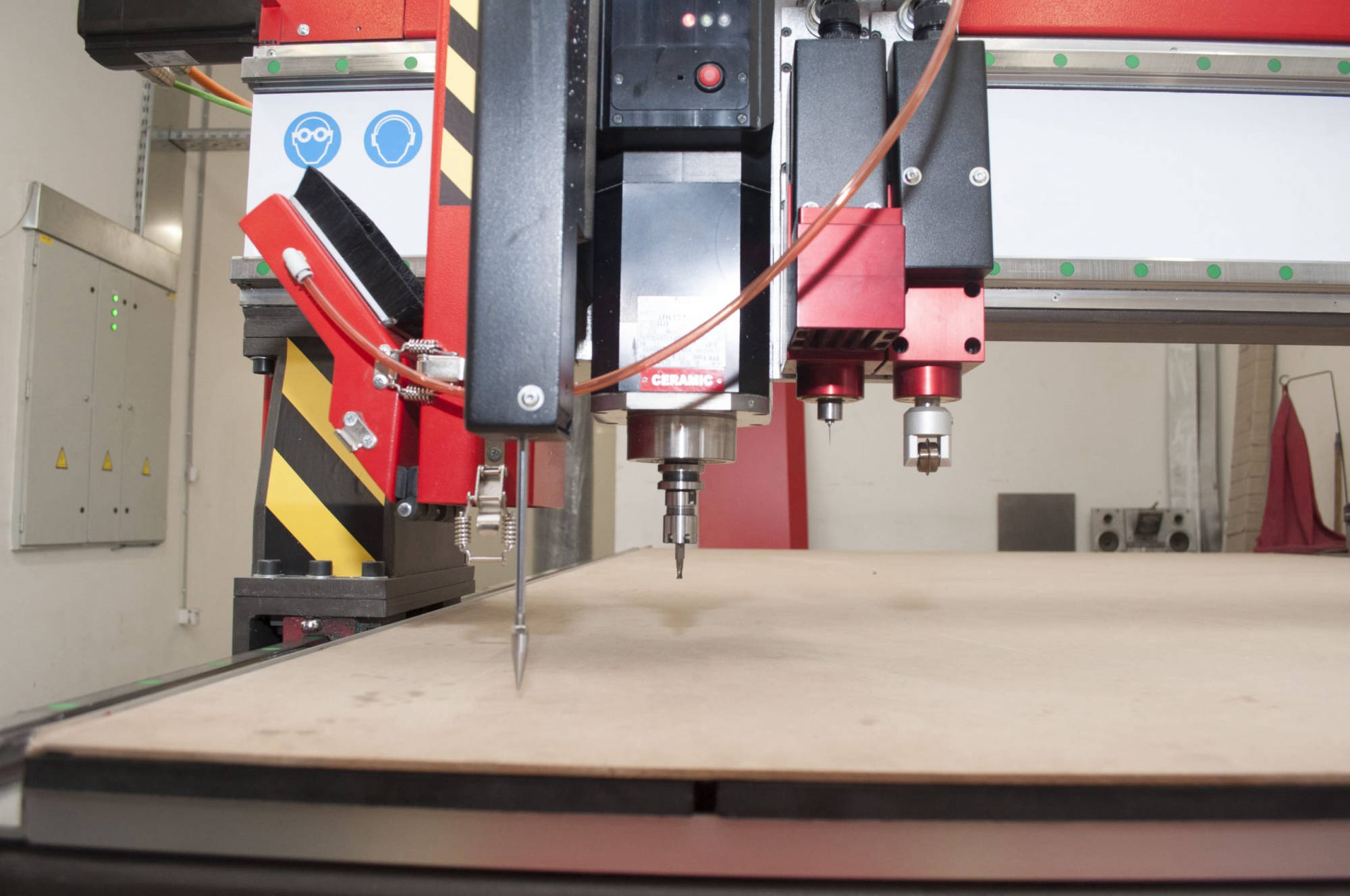

Add tangential module knives. Ideal solution for the advertising industry
